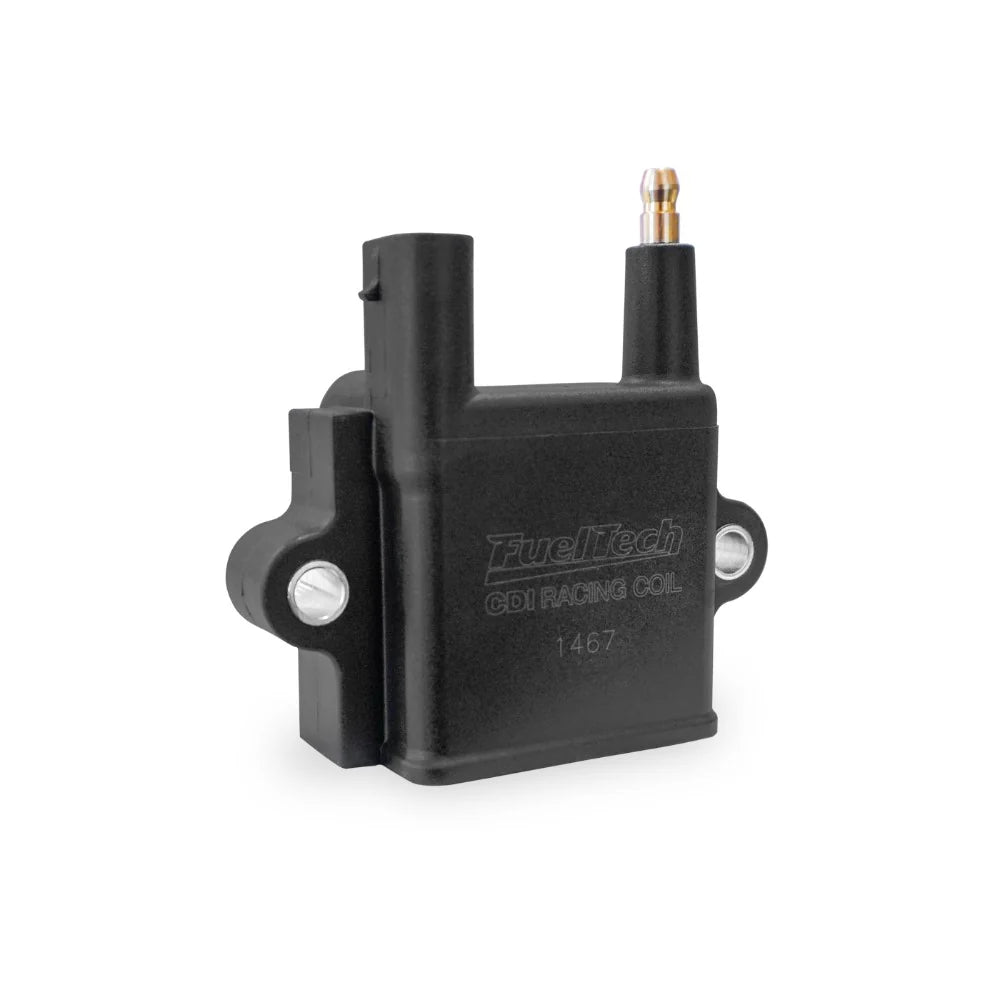

CDI Racing Ignition Coil (Set of 4 with connectors)

FuelTech's CDI Racing Ignition Coils are engineered to deliver exceptional power and reliability for engines with high-compression ratios, boost, or nitrous. Designed specifically for use with FTSPARK ignition modules, these high-energy capacitive discharge ignition coils ensure your engine performs at its peak.

FEATURES

• High-Performance Design: Perfect for engines with high-compression ratios, boost, or nitrous, providing the power and reliability needed for top performance.
• Optimized for FTSPARK Modules: Designed to work seamlessly with FTSpark Ignition Modules, including the standard FTSPARK and the FTSPARK Extreme for higher energy output.
• Capacitive Discharge Technology: Ensures rapid, high-energy spark delivery with a capacitance of 1.5mF, enhancing ignition efficiency.
• Individual Coil Per Cylinder: Provides precise control and performance for each cylinder, suitable for use with rotary engines.
• Impressive Spark Output: Capable of 750mJ spark output or up to 1,500mJ when paired with the FTSPARK Extreme Ignition Module

TECHNICAL SPECIFICATIONS

• Capacitance: 1.5mF
• Coil Style: Capacitive Discharge
• Coil Wire Attachment: Male
• Leakage Inductance: 0.057 mH
• Output (no load): 44k V
• Primary Inductance: 0.78 mH        +/-15%
• Primary Resistance: 0.090 ohms    +/-10%
• Secondary Inductance: 3.7 H         +/-15%
• Secondary Resistance: 988 ohms   +/-15%
• Test Voltage: 470 V DC
• Turns Ratio: 70:1
